05-50148-00 9540-2M2 NVMe/SATA 12Gb RAID PCIe 4.0 x8
Applications
The MegaRAID 9540-2M2 adapter provides a reliable boot solution based on the Broadcom second-generation PCIe Gen 4.0 Tri-Mode SAS3808 I/O controller. The 9540-2M2 adapter supports two M.2 NVMe or SATA drives, enabling users to separate their OS drives from their primary data drives. By taking advantage of the unified Broadcom tool suite, users familiar with the Broadcom standard RAID and HBA controllers can easily integrate the 9540-2M2 adapter into their existing management application suite.

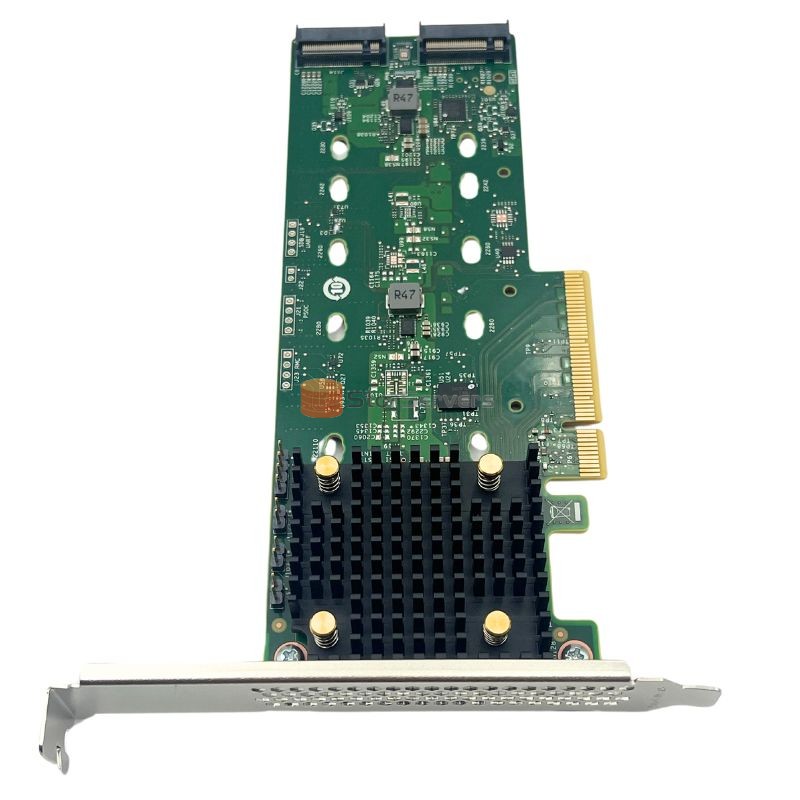

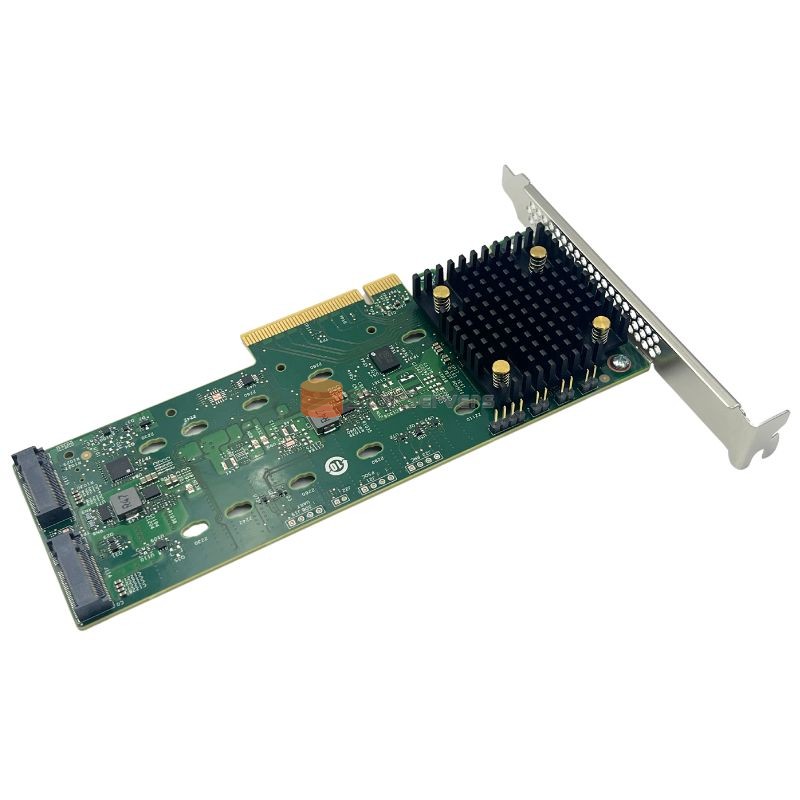

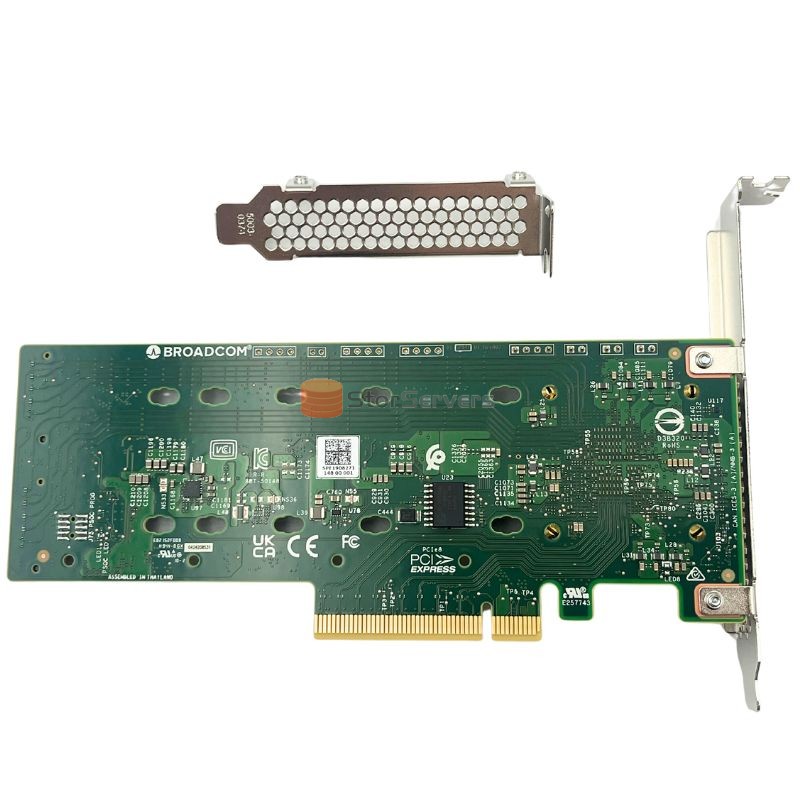

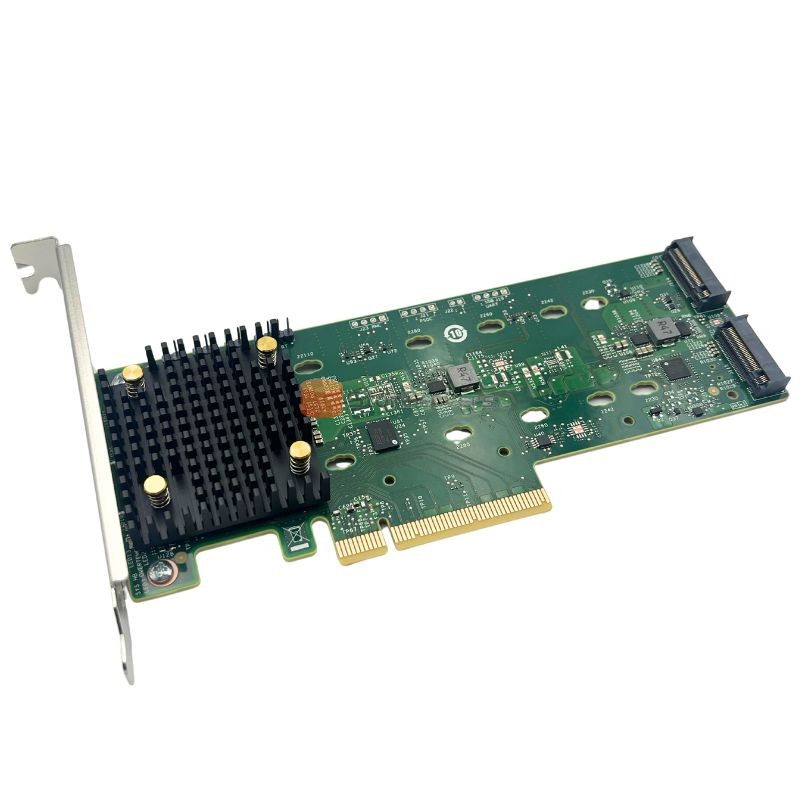

The 9540-2M2 adapter is a low-profile, half-length adapter that fits into a standard PCIe slot with two on-board M.2 drives. Customers who trust hardware RAID for critical data can expand this trust to their OS drives. There is no need to sacrifice two drive bays that can be used for user data. The 9540-2M2 adapter enables RAID 0 and 1, using the trusted Broadcom MegaRAID stack.
Key Features
- Online capacity expansion (OCE)
- Auto resume after loss of system power during array rebuild or OCE
- PCIe low-profile, half-length form factor
- M.2 drives are not included.
- Supports x8, x4, x2, and x1 PCIe lanes
- Up to 16.0GT/s per lane, full duplex
- Two M.2 NVMe drives or two M.2 SATA drives
- Check consistency for background data integrity
- SSD support with SSD Guard technology
- Global/local hot spare disk
- External configuration management
- Startup disk settings
- 6Gb/s SATA, Gen 4.0 NVMe (x1, x2, x4)
- DDF-compliant Configuration on Disk (COD)
Specification
| Model |
9540-2M2 |
| Form factor |
PCIe low profile |
| RAID Levels |
0，1 |
| Host Connector |
PCIe 4.0 x8 |
| Port interface |
12Gb/s NVMe /SATA |
| Connectors |
Two M.2 |
Storage Interface
|
6Gb/s SATA, Gen 4.0 NVMe (x1, x2, x4)
|
Drive interface
|
NVMe，SATA |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
