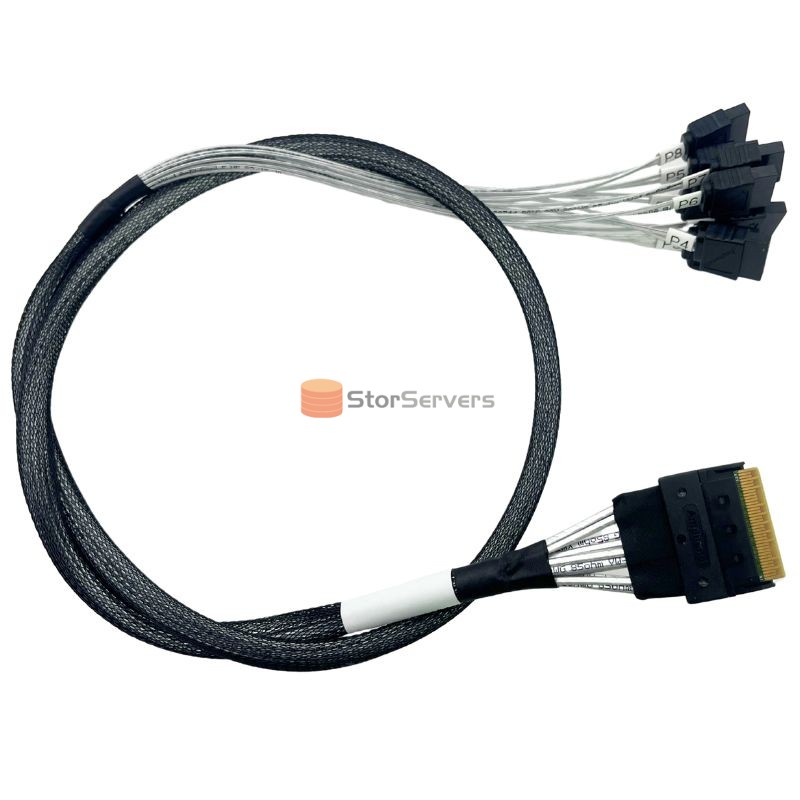

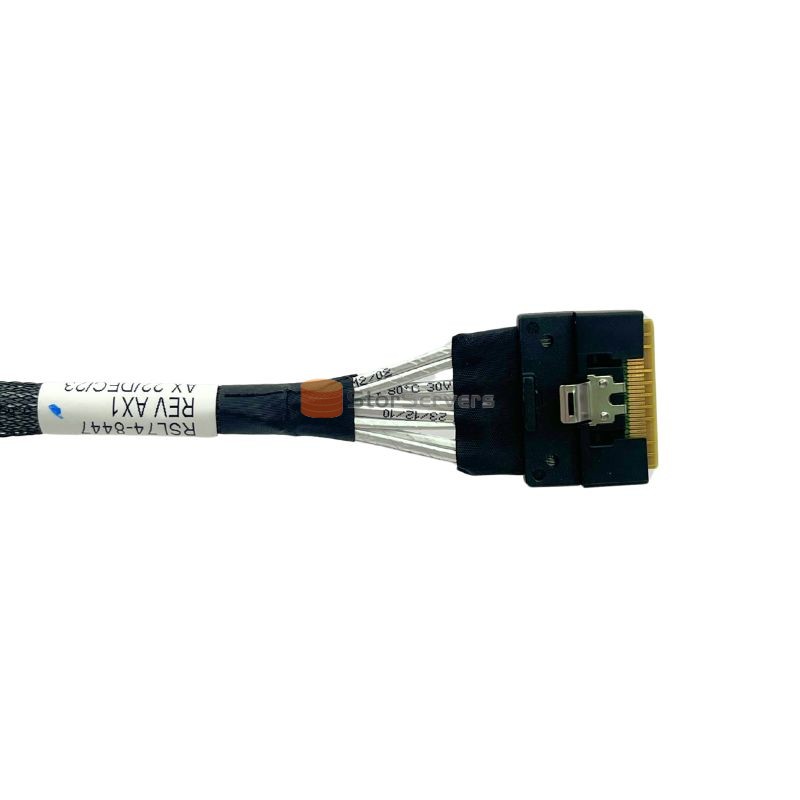

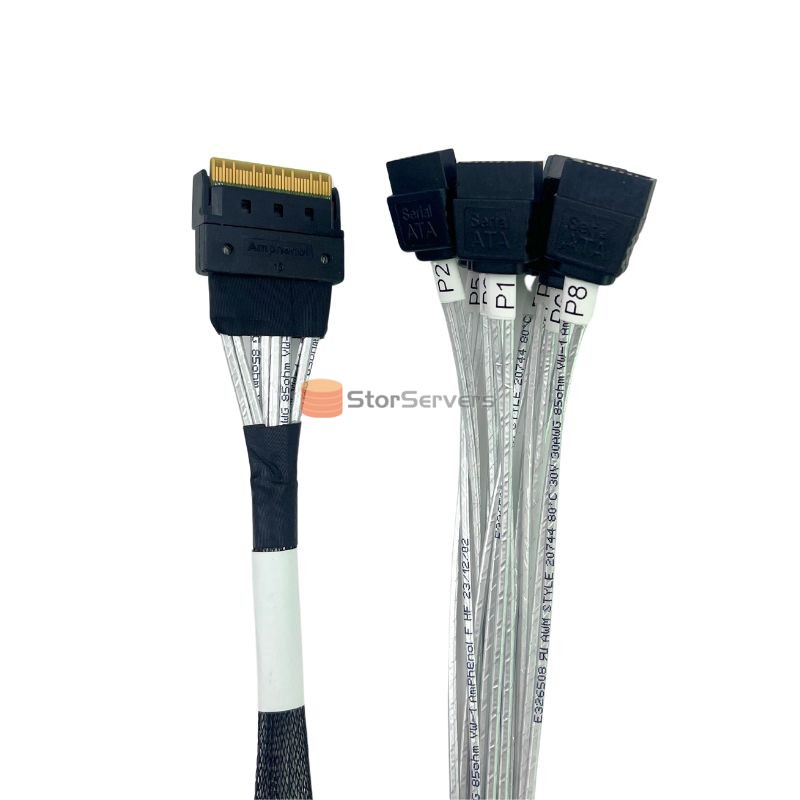

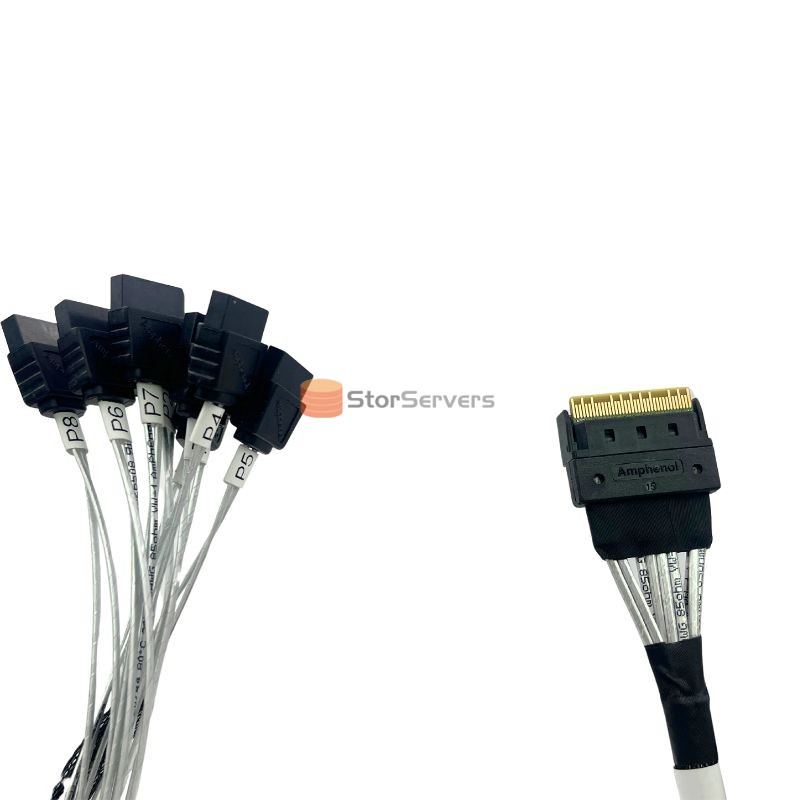

Data Cable SFF 8654 4x to SFF 8643
Applications
1、 Interface form: Host: SFF-8654 4i (SlimSAS), 38 pins, 0.6mm spacing, internal high-density, unshielded, with locking buckle. Device：SFF-8643（MiniSAS HD 4i）， 36 pin, internal, shielded, with lock buckle. 2、 Channel and speed: Number of channels: x4 (4 channels), one pair is always connected. SAS speed: SAS 4.0:24 Gb/s per channel, total 96 Gb/s. SAS 3.0:12 Gb/s per channel, total 48 Gb/s (commonly used). PCIe compatibility: PCIe 4.0 x4 (8 GT/s), PCIe 3.0 compatible. Impedance: 100 Ω differential. 3、 Cable specifications (passive copper cable): Wire gauge: 30 AWG/32 AWG (fine and flexible, suitable for internal wiring). Standard length: 0.5m, 1m (generally not exceeding 1m inside). Rated voltage/current: 30V DC; 0.5A per needle. 4. Mechanical and environmental: Insertion and extraction force: maximum 150N; unlocking force ≥ 50N. Temperature: -20 ℃~+85 ℃ (industrial grade). Certification: RoHS, REACH.
Key Features
- SlimSAS 4i to Internal MiniSAS HD 4i
- Host: SFF-8654 4i（SlimSAS）， 38 needles, 0.6mm spacing, high-density interior, unshielded, with locking buckle
- Device: SFF-8643（MiniSAS HD 4i）， 36 pin, internal, shielded, with locking buckle
- SAS speed: SAS 4.0:24 Gb/s per channel, total 96 Gb/s, SAS 3.0:12 Gb/s per channel, total 48 Gb/s (commonly used)
- PCIe compatibility: PCIe 4.0 x4 (8 GT/s), PCIe 3.0 compatible
- Impedance: 100 Ω differential
Specification
| Model |
SFF 8654 4x to SFF 8643 |
| Host |
SFF-8654 4i（SlimSAS）， 38 needles, 0.6mm spacing, high-density interior, unshielded, with locking buckle |
| Device |
SFF-8643（MiniSAS HD 4i）， 36 pin, internal, shielded, with locking buckle |
| length |
0.5m/1m
|
| Controller |
Lack |
| Systems Interface Type |
SlimSAS 4i to Internal MiniSAS HD 4i |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
