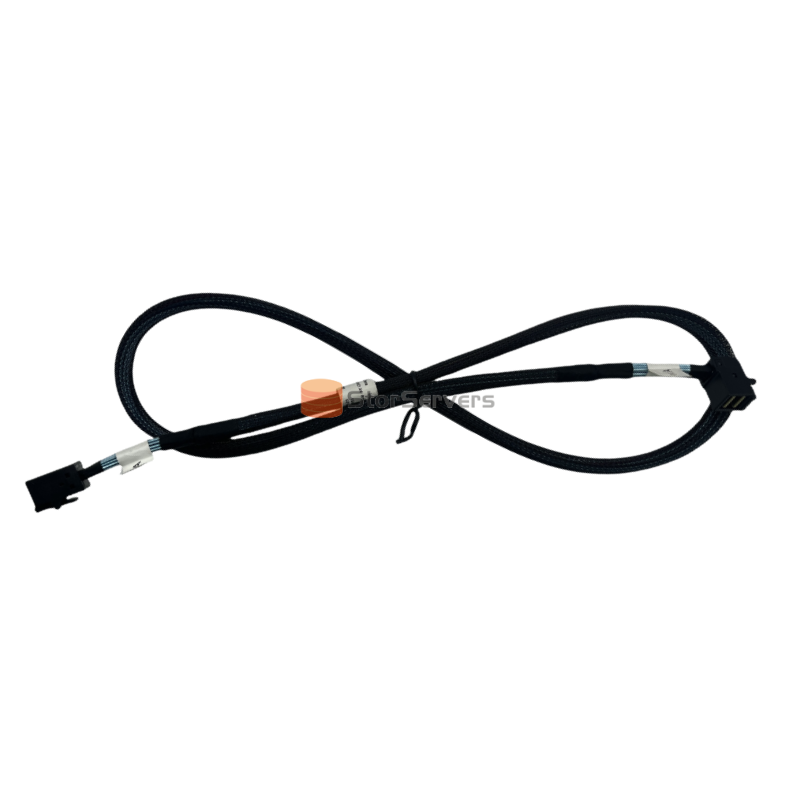

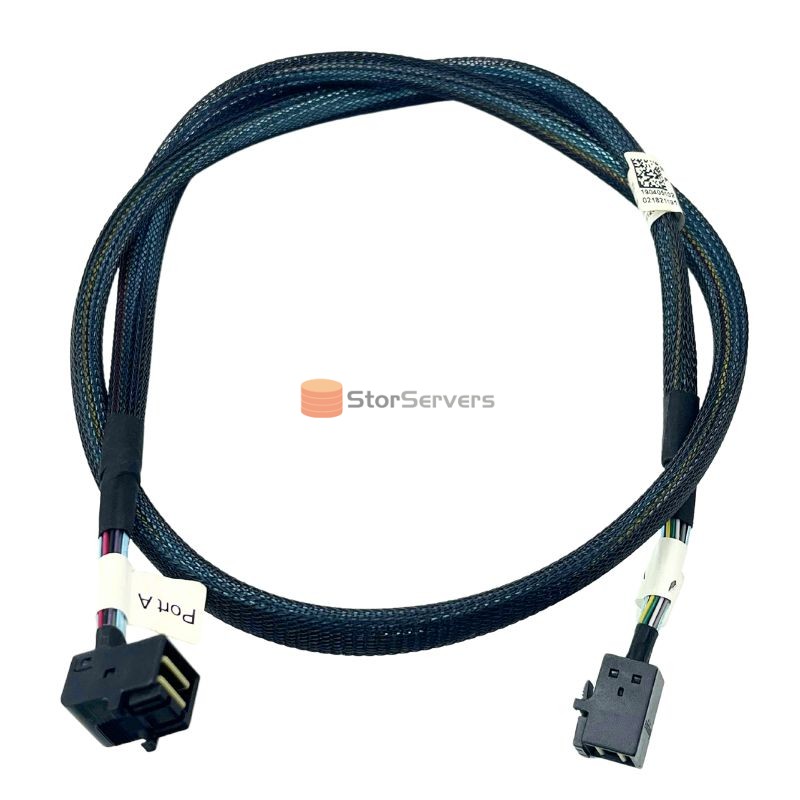

Data cable SFF8643 to SFF8643, one end inward bend
Applications
1. Connector and form: Connector: Both ends are SFF-8643 (MiniSAS HD, 36pin, 4i). Form: Straight at one end and Right Angle at 90 ° at the other end, facing downwards/towards the plate. Buckle: Comes with a metal buckle to prevent detachment. Usage: RAID card/HBA ↔ SAS/SATA backplane/hard drive cage, saving internal space of the chassis. 2. Speed and Protocol: Standard: SAS 3.0 (12Gbps), backward compatible with SAS 2.0 (6G) and SAS 1.0 (3G). Single channel: 12 Gbps/lane, with a total bandwidth of 48 Gbps for 4 channels. Compatibility: SAS/SATA hard drives, SSDs, RAID cards (such as P416i-p, 9300-8i).
Key Features

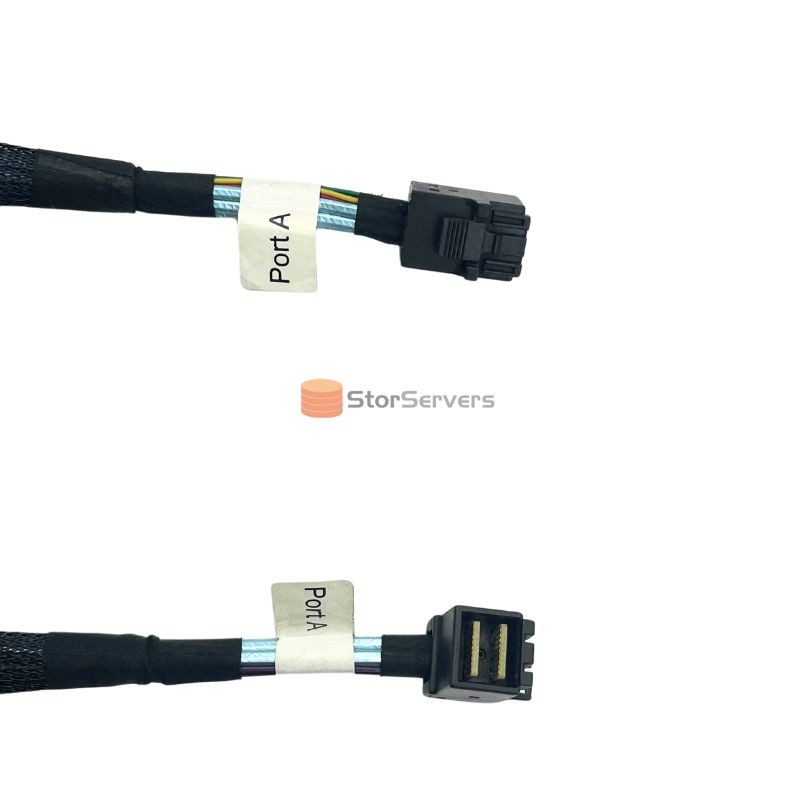

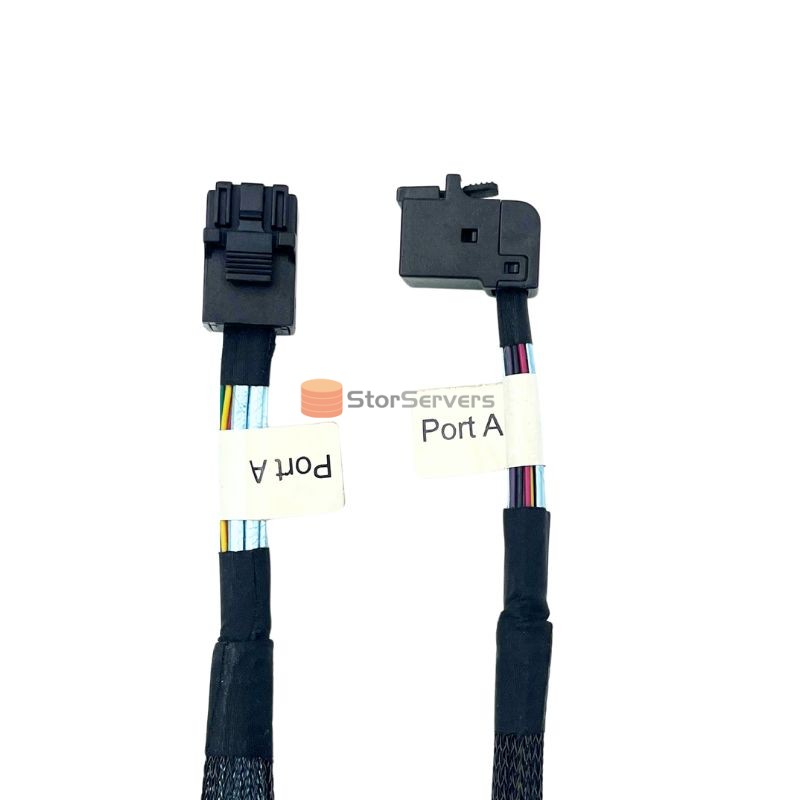

- One end straight, one end 90 ° inward curved
- Connector: Both ends are SFF-8643 (MiniSAS HD, 36pin, 4i)
- Buckle: Comes with a metal buckle to prevent detachment
- Standard: SAS 3.0 (12Gbps), backward compatible with SAS 2.0 (6G), SAS 1.0 (3G)
- Single channel: 12 Gbps/lane, 4-channel total bandwidth of 48 Gbps
- Compatibility: SAS/SATA hard drives, SSDs, RAID cards (such as P416i-p, 9300-8i)
Specification
| Model |
SFF8643 to SFF8643, one end inward bend |
| Connector: |
Both ends are SFF-8643 (MiniSAS HD, 36pin, 4i) |
| Buckle : |
Comes with a metal buckle to prevent detachment |
| length |
0.5m/0.75m/0.8m/1m
|
| Controller |
Lack |
| Systems Interface Type |
One end straight, one end 90 ° inward curved |
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
